From Splunk to Sigma: Building and Validating Vendor-Neutral Detection Logic

A detection-engineering exercise using Sigma, Splunk, Windows telemetry, and Atomic Red Team to validate vendor-neutral detection logic

Introduction

A detection that works in one SIEM is useful, but a detection whose behavioral logic can be expressed independently of the SIEM, converted back into a platform-specific query, and then validated against adversary-simulation telemetry is much more interesting.

That was the goal of this project.

In my previous article, I created a Splunk detection for suspicious PowerShell execution and validated it against an Atomic Red Team simulation.

The rule looked for:

encoded PowerShell commands
hidden PowerShell windows

The original Splunk search was:

index=* EventCode=1 Image="*powershell.exe"
(CommandLine="*-EncodedCommand*"
OR CommandLine="*-WindowStyle Hidden*")
| stats count by host User CommandLine ParentImage

This query contains several things that are specific to my Splunk implementation.

For example:

index=*
EventCode=1
| stats ...

These are useful in Splunk, but they are not the actual behavioral requirement of the detection.

The behavioral requirement is much simpler:

Windows process creation
        AND
PowerShell
        AND
(
    Encoded PowerShell
    OR
    Hidden PowerShell window
)

That distinction became the foundation of this project.

2. Separating Detection Logic from SIEM Implementation

Before writing the Sigma rule, I deliberately separated the detection into two layers.

Splunk-specific implementation

index
EventCode
Splunk field names
result formatting
stats

Behavioral detection logic

Process creation
AND
PowerShell
AND
(
    EncodedCommand
    OR
    WindowStyle Hidden
)

This distinction matters because Sigma is designed to describe detection logic in a vendor-neutral format rather than reproduce an individual SIEM’s complete query. Sigma describes itself as a generic, vendor-agnostic format intended to make detection methods shareable across different environments. Sigma

Therefore, I did not attempt to translate the original SPL line-for-line.

Instead, I asked:

What behavior am I actually trying to detect?

That produced the following Sigma rule.

3. Writing the Sigma Rule

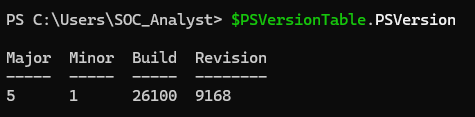

PS version.png

PowerShell environment used for Sigma rule development and validation.

The initial rule was:

title: Suspicious PowerShell Execution Parameters
id: 7b5d6f8e-9f2a-4d3c-a1b7-82c6e4f51903
status: experimental
description: Detects PowerShell process creation using encoded commands or hidden window execution.
author: citadelcybersec
date: 2026/09/13

logsource:
    product: windows
    category: process_creation

detection:
    selection_image:
        Image|endswith:
            - '\powershell.exe'
            - '\pwsh.exe'

    selection_encoded:
        CommandLine|contains:
            - '-EncodedCommand'
            - '-enc '

    selection_hidden:
        CommandLine|contains:
            - '-WindowStyle Hidden'
            - '-w hidden'

    condition: selection_image and (selection_encoded or selection_hidden)

falsepositives:
    - Legitimate administrative scripts using encoded PowerShell commands.
    - Legitimate automation using hidden PowerShell windows.

level: medium

tags:
    - attack.execution
    - attack.t1059.001
    - attack.defense_evasion

Several things are intentionally absent.

There is no:

EventCode: 1

source: WinEventLog:Microsoft-Windows-Sysmon/Operational

index: "*"

| stats count ...

Those belong to the implementation and investigation layer of my Splunk environment. The Sigma rule instead expresses the detection requirements.

4. A Small Problem: ATT&CK Tag Validation

Sigma version.png

Sigma CLI installed locally and ready for detection-rule validation and conversion.

I then validated the rule using Sigma CLI:

sigma check C:\Sigma\suspicious_powershell_execution.yml

The rule itself parsed successfully, but Sigma reported an issue with the ATT&CK tagging:

InvalidATTACKTagIssue
tag=attack.defense_evasion

The problem was the ATT&CK tag:

- attack.defense_evasion

I removed the invalid tag and retained the more specific technique mapping:

tags:
    - attack.execution
    - attack.t1059.001

I then ran the validation again. The rule passed without rule or condition errors.

This was a useful reminder that writing a syntactically valid detection is not the same as writing a correctly structured detection.

Instead of ignoring the warning, I investigated it, identified the problematic metadata, corrected the rule, and revalidated it before moving forward.

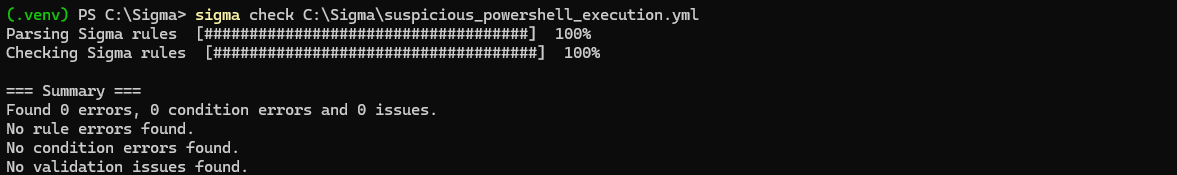

Validating the sigma rule - corrected.png

Successful validation of the Sigma rule after correcting the ATT&CK metadata.

5. Converting Sigma into Splunk SPL

With the rule validated, the next question was if the vendor-neutral rule could be converted back into a Splunk detection.

I installed the Sigma Splunk backend and attempted the conversion:

sigma convert -t splunk C:\Sigma\suspicious_powershell_execution.yml

The conversion did not immediately work. Sigma returned:

Processing pipeline required by backend!

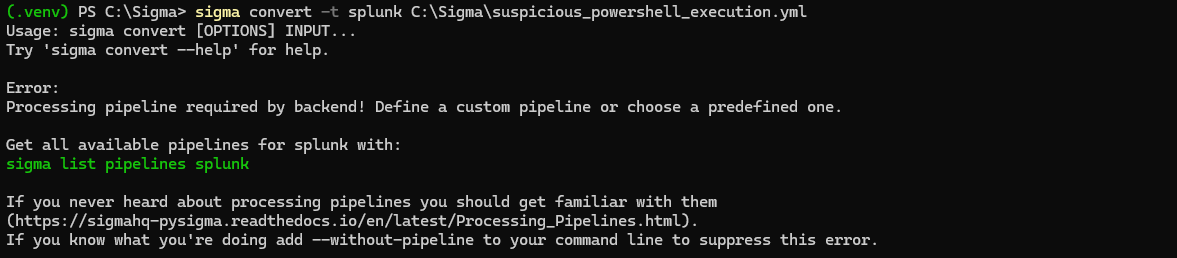

failed conversion - processing pipeline required.png

Initial Sigma-to-Splunk conversion fails because the Splunk backend requires a processing pipeline.

This was another useful discovery. Installing a backend is not necessarily enough. The conversion process can also require an appropriate processing pipeline to translate the generic rule into the target platform’s field and query conventions.

Sigma’s CLI identified the available Splunk pipelines, including:

splunk_windows

Because the detection concerns Windows process-creation telemetry, I selected the Windows pipeline rather than adding unrelated pipelines simply to make the conversion work.

The conversion command became:

sigma convert -t splunk `
    -p splunk_windows `
    C:\Sigma\suspicious_powershell_execution.yml

Then, the conversion succeeded.

Corrected conversion.png

Sigma successfully converted into Splunk SPL using the splunk_windows processing pipeline.

6. The Generated SPL Needed Investigation

The generated query was:

Image IN ("*\\powershell.exe", "*\\pwsh.exe")
CommandLine IN ("*-EncodedCommand*", "*-enc *")
OR CommandLine IN ("*-WindowStyle Hidden*", "*-w hidden*")

At first glance, this looked unusual.

My Sigma condition was:

condition: selection_image and (selection_encoded or selection_hidden)

So I expected the generated SPL to visibly contain equivalent grouping.

Instead, the output appeared as:

AND
EncodedCommand
OR
HiddenWindow

That raised an important question:

Did the conversion actually preserve my intended detection logic?

Rather than assuming that it did, I investigated the generated query.

7. Investigating the Boolean Logic

There was an important detail in the target language.

Splunk’s search command supports implicit AND between conditions and has specific grouping behavior for combinations of AND and OR. Splunk documents that:

A B OR C

is processed equivalently to:

A AND (B OR C)

unless explicit grouping changes the expression. Splunk Documentation

That means the generated query:

Image IN ("*\\powershell.exe", "*\\pwsh.exe")
CommandLine IN ("*-EncodedCommand*", "*-enc *")
OR CommandLine IN ("*-WindowStyle Hidden*", "*-w hidden*")

is effectively interpreted as:

Image IN (PowerShell)
AND
(
    CommandLine IN (EncodedCommand)
    OR
    CommandLine IN (HiddenWindow)
)

That is the same behavioral logic expressed by the Sigma condition.

This was an important lesson in the project:

A generated query does not necessarily need to look textually identical to the source rule to preserve its logical meaning.

The target language’s own evaluation rules matter.

8. Why `EventCode=1` Is Not in the Sigma Rule

One of the most important questions in this project was:

Why didn’t Sigma generate EventCode=1?

The answer goes back to the distinction between behavioral logic and environment-specific implementation.

My original detection used:

EventCode=1

because I know that my Windows telemetry is coming from Sysmon and that Event ID 1 represents process creation in that telemetry.

The Sigma rule instead describes:

logsource:
    product: windows
    category: process_creation

The detection is therefore concerned with the process-creation behavior, rather than hard-coding the Sysmon event identifier used by my particular Splunk deployment.

The same reasoning applies to:

index=*

and:

| stats count ...

Those are not part of the behavioral detection itself.

The generated SPL therefore did not reproduce my entire original Splunk query. It reproduced the detection portion of it.

That is exactly what I wanted to investigate.

9. Original SPL vs Sigma-Generated SPL

At this point, I compared the two implementations.

Original Splunk detection

index=* EventCode=1 Image="*powershell.exe"
(CommandLine="*-EncodedCommand*" OR CommandLine="*-WindowStyle Hidden*")
| stats count by host User CommandLine ParentImage

Sigma-generated Splunk detection

Image IN ("*\\powershell.exe", "*\\pwsh.exe")
CommandLine IN ("*-EncodedCommand*", "*-enc *")
OR CommandLine IN ("*-WindowStyle Hidden*", "*-w hidden*")

The queries are clearly not identical.

The original query contains:

a Splunk index;
an explicit Sysmon Event ID;
the original field syntax;
result aggregation.

The Sigma-generated query contains:

the process image logic;
the command-line conditions;
syntax generated by the Splunk backend.

That difference demonstrates the purpose of the abstraction. The Sigma rule captured the behavioral detection logic, while the target backend generated an implementation appropriate for Splunk.

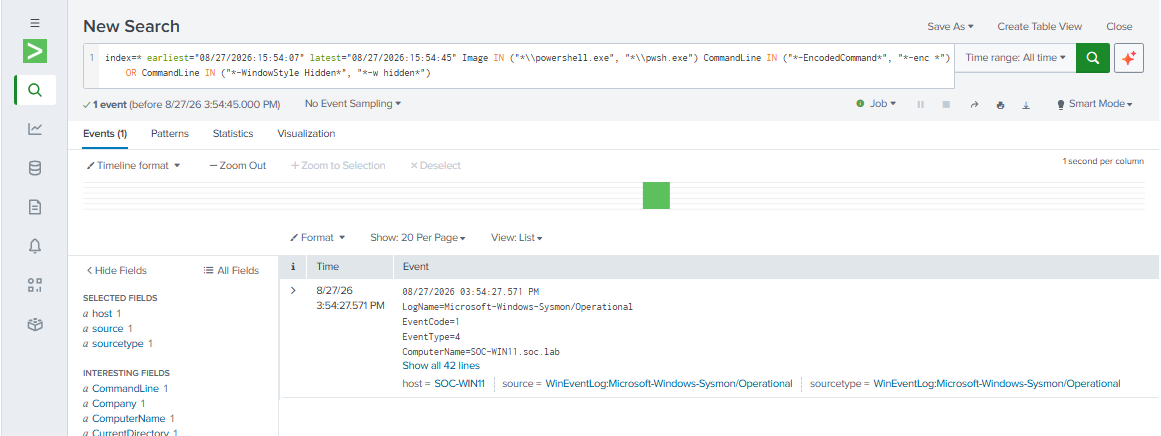

event successfuly found in splunk.png

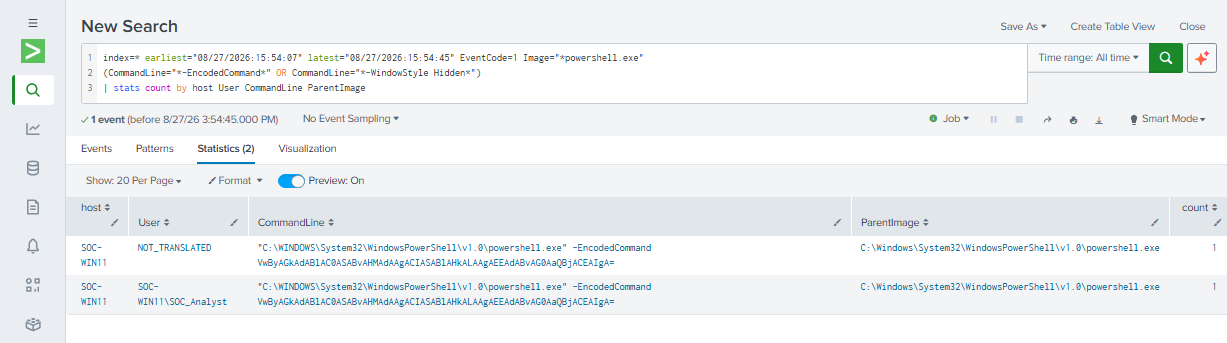

Original query results tested again for comparison.png

Comparing the original Splunk implementation with the SPL generated from the vendor-neutral Sigma rule.

10. Testing the Generated Detection Against Existing Telemetry

Before generating another attack simulation, I tested the generated query against telemetry from the earlier Atomic Red Team exercise.

Using the relevant time window, I ran:

index=* earliest="08/27/2026:15:54:07" latest="08/27/2026:15:54:45"
Image IN ("*\\powershell.exe", "*\\pwsh.exe")
CommandLine IN ("*-EncodedCommand*", "*-enc *")
OR CommandLine IN ("*-WindowStyle Hidden*", "*-w hidden*")

The search returned the expected PowerShell event. I then inspected the event fields to verify that the detection was actually matching the expected process-creation telemetry:

index=* earliest="08/27/2026:15:54:07" latest="08/27/2026:15:54:45"
Image IN ("*\\powershell.exe", "*\\pwsh.exe")
CommandLine IN ("*-EncodedCommand*", "*-enc *")
OR CommandLine IN ("*-WindowStyle Hidden*", "*-w hidden*")
| table _time host EventCode Image CommandLine ParentImage ParentCommandLine User ParentUser

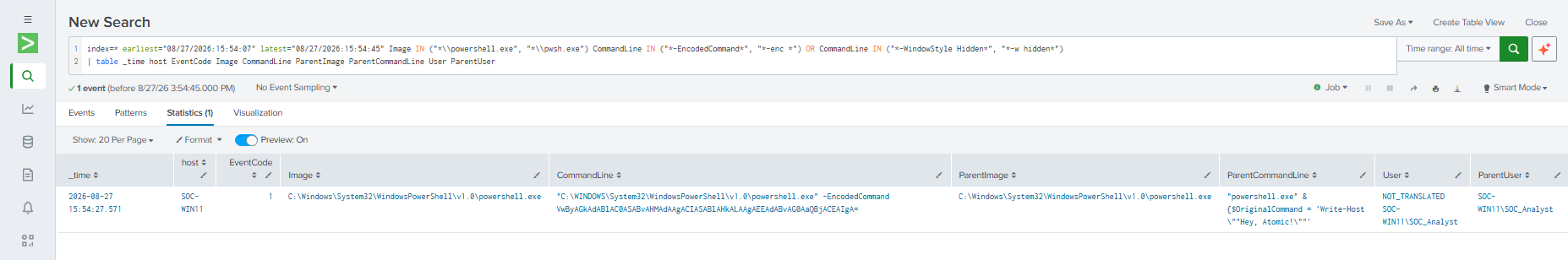

telemetry fields involved in the detection.png

Verifying the actual telemetry fields involved in the new detection

This confirmed that the generated detection could identify the telemetry associated with the previously validated attack simulation.

However, this test alone was not enough. The event already existed. I wanted to test whether the detection would identify new telemetry generated after the Sigma rule was created.

11. Fresh Atomic Red Team Validation

The final validation stage was therefore a fresh Atomic Red Team execution.

I used the same Windows workstation in my SOC lab and executed the Atomic Red Team test for:

T1027 — Obfuscated Files and Information

specifically the test that generates encoded PowerShell activity.

I recorded the time immediately before and after execution:

Get-Date

Invoke-AtomicTest T1027 `
   -TestNumbers 2 `
   -PathToAtomicsFolder "C:\AtomicRedTeam\atomics"

Get-Date

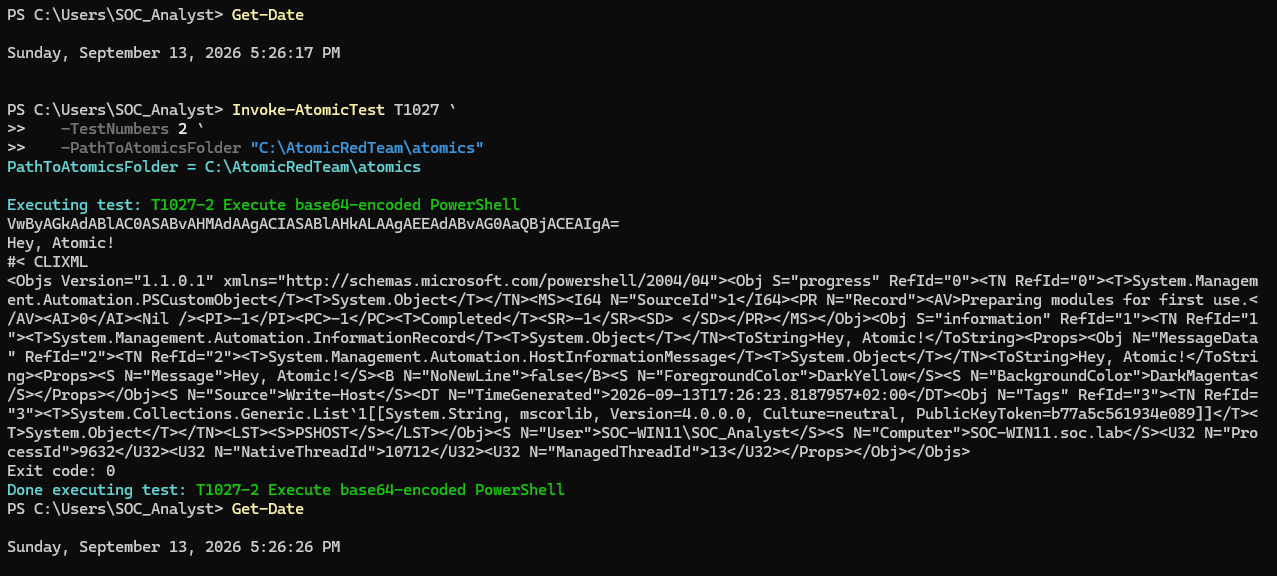

atomic fired.png

Executing Atomic Red Team’s AtomicTest T1027, which generated a fresh adversary-simulation event, reproducing the same activity I was using for detection.

The timestamp gave me a narrow window in which to search for the newly generated telemetry.

This is important because the validation is now reproducible:

Atomic Red Team
       ↓
Generate activity
       ↓
Sysmon
       ↓
Splunk
       ↓
Sigma-generated detection

12. The Sigma-Generated Detection Finds the Fresh Attack

I then ran the generated detection against the new event:

index=* earliest="09/13/2026:17:26:17" latest="09/13/2026:17:26:26"
Image IN ("*\\powershell.exe", "*\\pwsh.exe")
CommandLine IN ("*-EncodedCommand*", "*-enc *")
OR CommandLine IN ("*-WindowStyle Hidden*", "*-w hidden*")
| table _time host EventCode Image CommandLine ParentImage ParentCommandLine User ParentUser ProcessId ParentProcessId
| sort _time

The query returned the newly generated PowerShell process-creation telemetry.

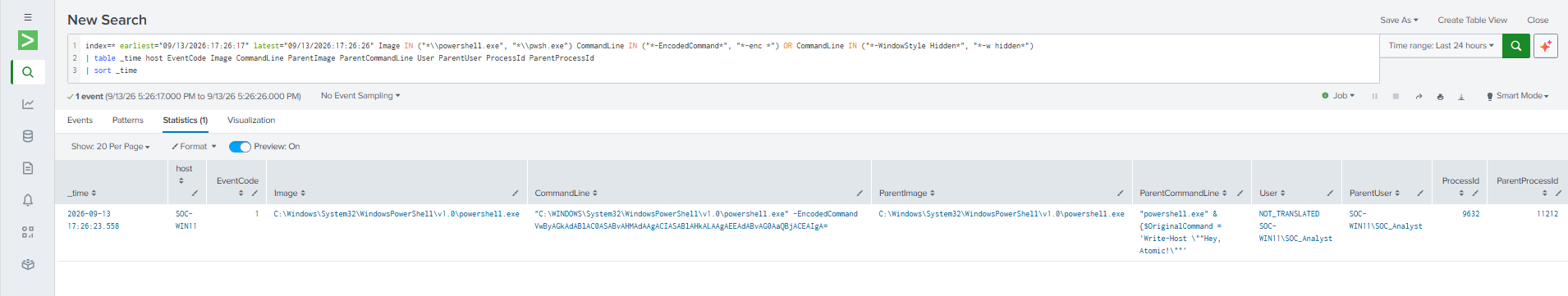

splunk new rule finds atomic.png

Sigma-generated Splunk detection identifying the freshly generated Atomic Red Team T1027 encoded PowerShell execution.

This provided the first half of the final validation:

The Sigma-generated Splunk detection identified newly generated Atomic Red Team telemetry.

The Sigma rule reproduced the behavioral detection logic, while leaving SIEM-specific implementation details such as the index, event ID, and result formatting to the target environment.

13. Running the Original Detection Against the Same Event

I then ran the original detection over exactly the same time window:

index=* earliest="09/13/2026:17:26:17" latest="09/13/2026:17:26:26"
EventCode=1 Image="*powershell.exe"
(CommandLine="*-EncodedCommand*" OR CommandLine="*-WindowStyle Hidden*")
| stats count by host User CommandLine ParentImage

The original detection also identified the same Atomic Red Team execution.

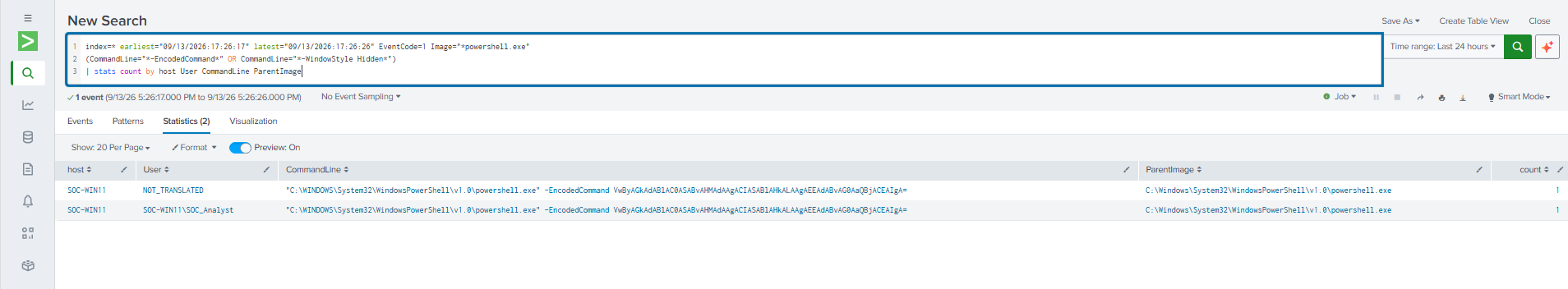

splunk old rule find atomic.png

Original hand-written Splunk detection identifying the same Atomic Red Team execution.

This provided the second half of the validation:

The original Splunk implementation and the Sigma-generated implementation both detected the same freshly generated adversary-simulation activity.

14. What the Experiment Actually Demonstrated

The two queries are visibly different. The most meaningful conclusion is:

The Sigma rule preserved the behavioral detection logic of the original Splunk detection and produced a Splunk query capable of detecting the same simulated attack activity.

The experiment demonstrated the following chain:

Splunk-specific detection
        ↓
Behavioral abstraction
        ↓
Vendor-neutral Sigma rule
        ↓
Sigma validation
        ↓
Splunk backend + Windows processing pipeline
        ↓
Generated Splunk query
        ↓
Existing telemetry validation
        ↓
Fresh Atomic Red Team execution
        ↓
Successful detection

The intent has been to create small detection-engineering workflow than simply writing a YAML file.

15. What I Learned

15.1 Detection logic and SIEM implementation are different things

One of the most useful lessons was learning to distinguish the what from the how.

The detection requirement was:

Detect PowerShell
+
detect suspicious execution parameters

The Splunk implementation added:

index
EventCode
field extraction
query syntax
result formatting

Keeping those concepts separate makes detections easier to reason about and potentially easier to migrate between platforms.

15.2 Validation is part of detection engineering

The ATT&CK tag issue and the processing-pipeline problem were not merely installation inconveniences.

They demonstrated why detection development should include validation at multiple stages:

Rule structure
        ↓
Metadata
        ↓
Conversion
        ↓
Generated query
        ↓
Actual telemetry

A detection should not be considered finished simply because a YAML file parses successfully.

15.3 Generated queries should be investigated, not blindly trusted

The first generated SPL looked unusual. Instead of assuming it was correct, or assuming it was broken, I examined the Boolean semantics of the target language. That investigation showed that Splunk’s search semantics preserved the intended grouping.

This was an important practical lesson:

Detection engineering requires understanding both the source detection language and the target query language.

15.4 Testing against fresh telemetry is stronger than testing against old telemetry

Testing the Sigma-generated detection against an existing event demonstrated that it could find known telemetry, but the fresh Atomic Red Team test provided stronger evidence, since the event did not exist when I wrote the Sigma rule. I generated the activity afterward and then asked Splunk to detect it. That makes the final test closer to a controlled detection-validation experiment.

16. Limitations

This project has several limitations:

First, this was a small home-lab environment rather than a production SOC. The validation used a controlled Windows environment and simulated adversary activity rather than real-world malicious activity, where the activity could be part of a more complex attack in a more extensive environment.

Second, keep in mind this exercise is focused in one detection for one kind of case. Successful detection of one Atomic Red Team test does not prove that the detection has comprehensive coverage of general PowerShell abuse. For example, attackers can use many different PowerShell execution patterns that this single rule does not attempt to detect.

Third, the Sigma rule is intentionally focused on the detection behavior demonstrated in this project. A production detection would require additional testing, tuning, false-positive analysis, and potentially broader telemetry coverage.

Finally, converting a rule successfully does not automatically make it production-ready. The resulting detection still needs to be reviewed in the context of the target SIEM, available fields, data sources, performance requirements, alerting strategy, and expected false positives.

17. What I Would Improve Next

There are several natural directions for extending this work.

The first would be to expand the rule’s validation coverage with additional Atomic Red Team tests and benign administrative PowerShell activity.

That would allow me to measure:

Detection coverage
False positives
Detection gaps

I could also investigate whether the detections should be expanded into multiple related Sigma rules rather than attempting to make one rule detect every form of suspicious PowerShell execution.

18. Conclusion

This project started with a simple question:

Can I take a detection written specifically for Splunk and turn its behavioral logic into something more portable?

The answer was yes, but the more important lesson was everything that happened between those two states.

I had to:

Identify the actual behavioral logic behind an existing SIEM query
Separate that logic from Splunk-specific implementation details
Write a Sigma detection
Validate its structure and metadata
Investigate an ATT&CK tagging issue
Configure the appropriate Splunk backend
Identify the required processing pipeline
Inspect the generated SPL rather than blindly trusting it
Reason about Boolean semantics in the target SIEM
Test the generated query against existing telemetry
Generate a fresh Atomic Red Team execution
Compare the Sigma-generated detection with the original Splunk detection

And the result was useful:

The vendor-neutral Sigma rule preserved the core behavioral intent of my original detection and produced a Splunk implementation that successfully detected the same simulated attack activity.

For me, this was the real value of the exercise:

I started with a working SIEM query. I finished with a better understanding of detection abstraction, validation, query translation, and detection engineering.
