Elastic Stack (ELK) for SOC Log Investigations

Essential ELK techniques for investigating and querying logs

In the world of cybersecurity, mastering log analysis is crucial for identifying malicious activity and ensuring system integrity. One of the most powerful tools for this task is the Elastic Stack (ELK), a set of open-source products that helps professionals search, analyze, and visualize log data in real time. In this article, we’ll walk through the tasks from the TryHackMe Elastic Stack: The Basics room, focusing on Tasks 4 and 5. These tasks are designed to teach essential techniques for investigating and querying logs, skills that are indispensable for any SOC analyst.

Task 4: Discover Tab

Question 1:

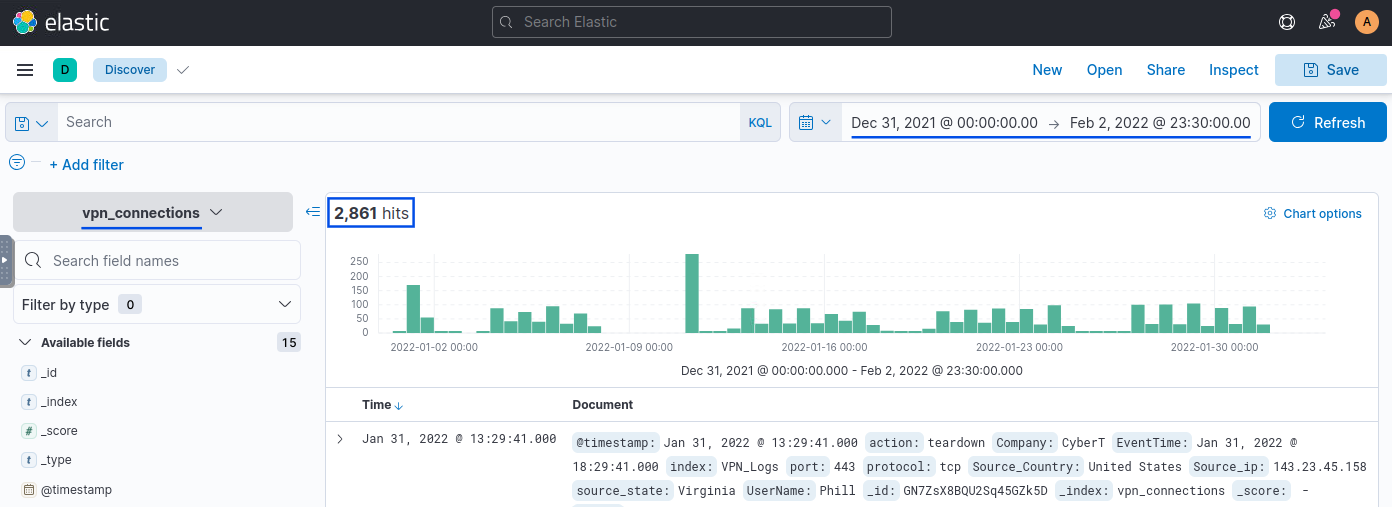

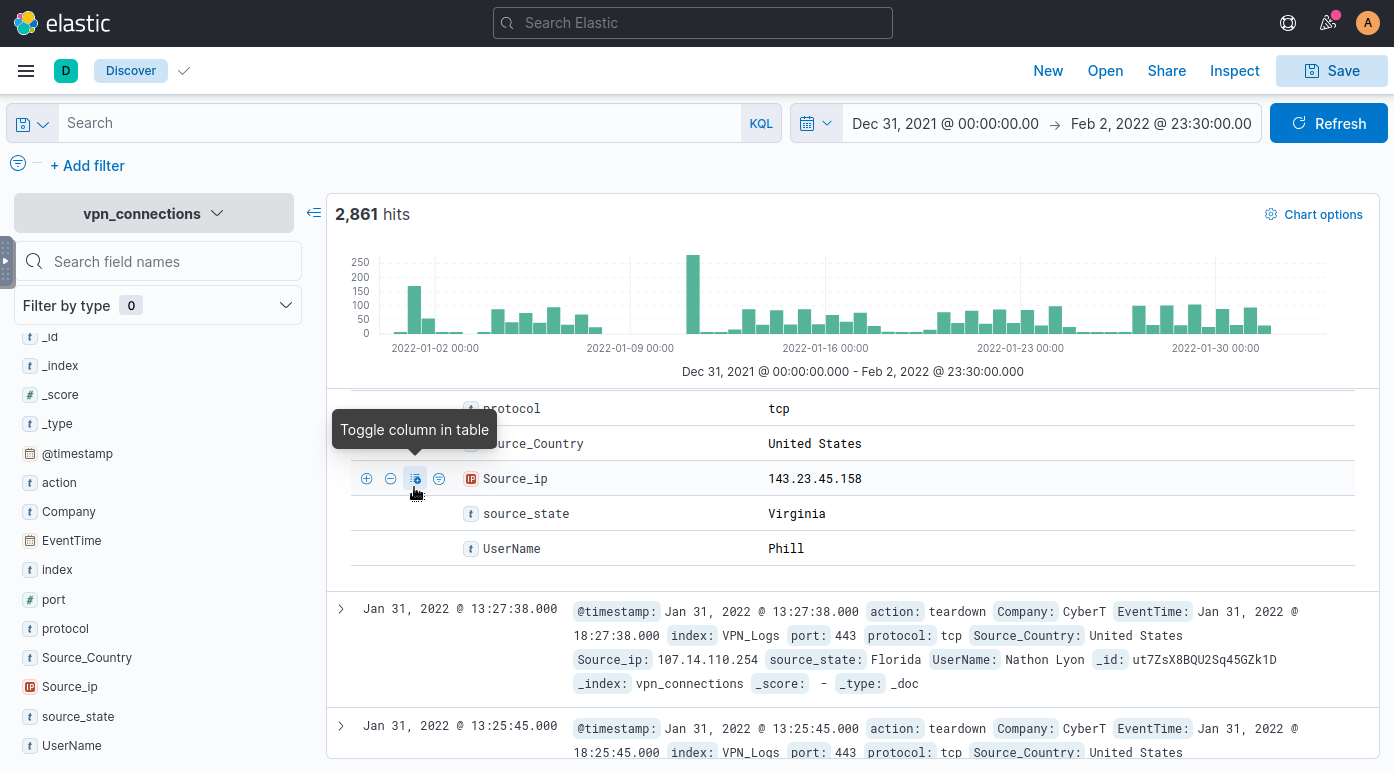

 Select the index vpn_connections and filter from 31st December 2021 to 2nd February 2022. How many hits are returned?

Process:

  • I navigated to the Discover tab and selected the index vpn_connections.
  • Then applied the date filter from 31st December 2021 to 2nd February 2022.


Answer: 2861

Question 2:

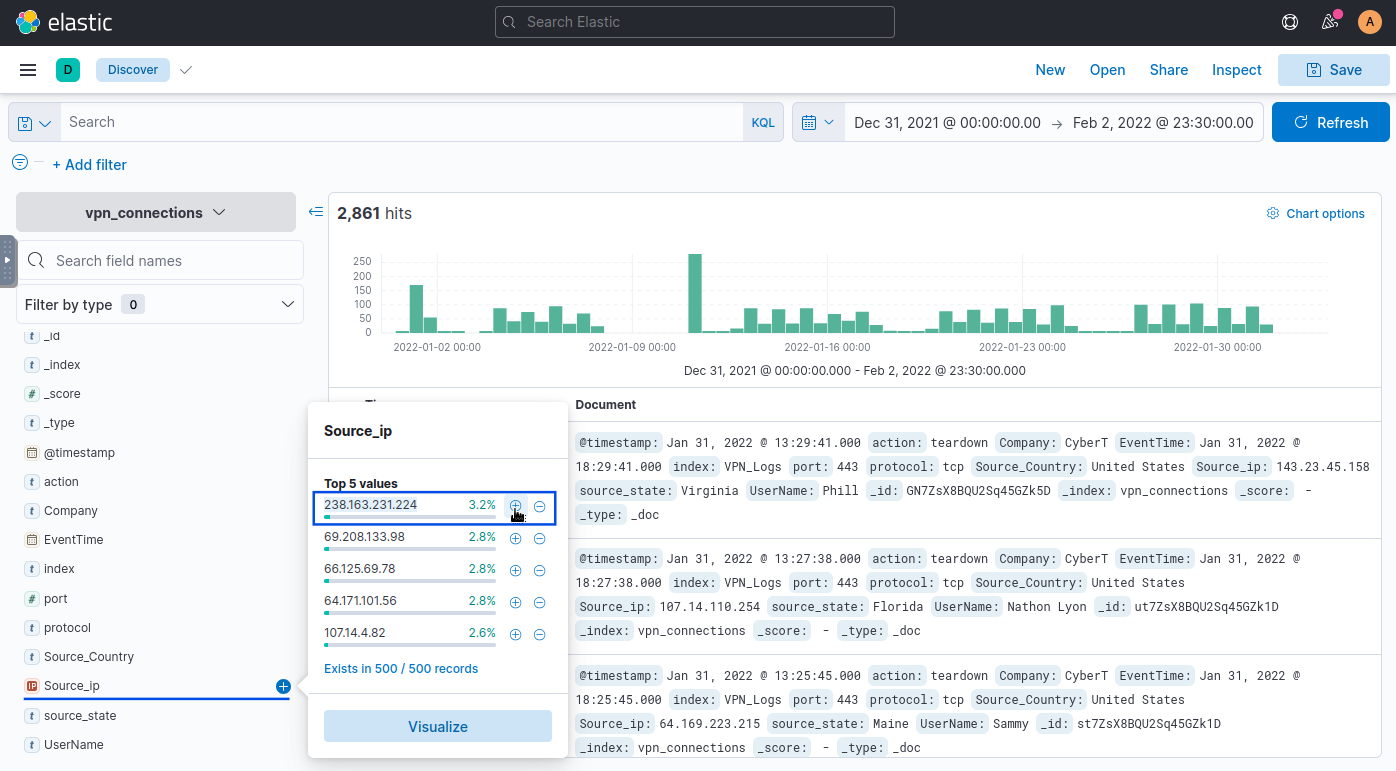

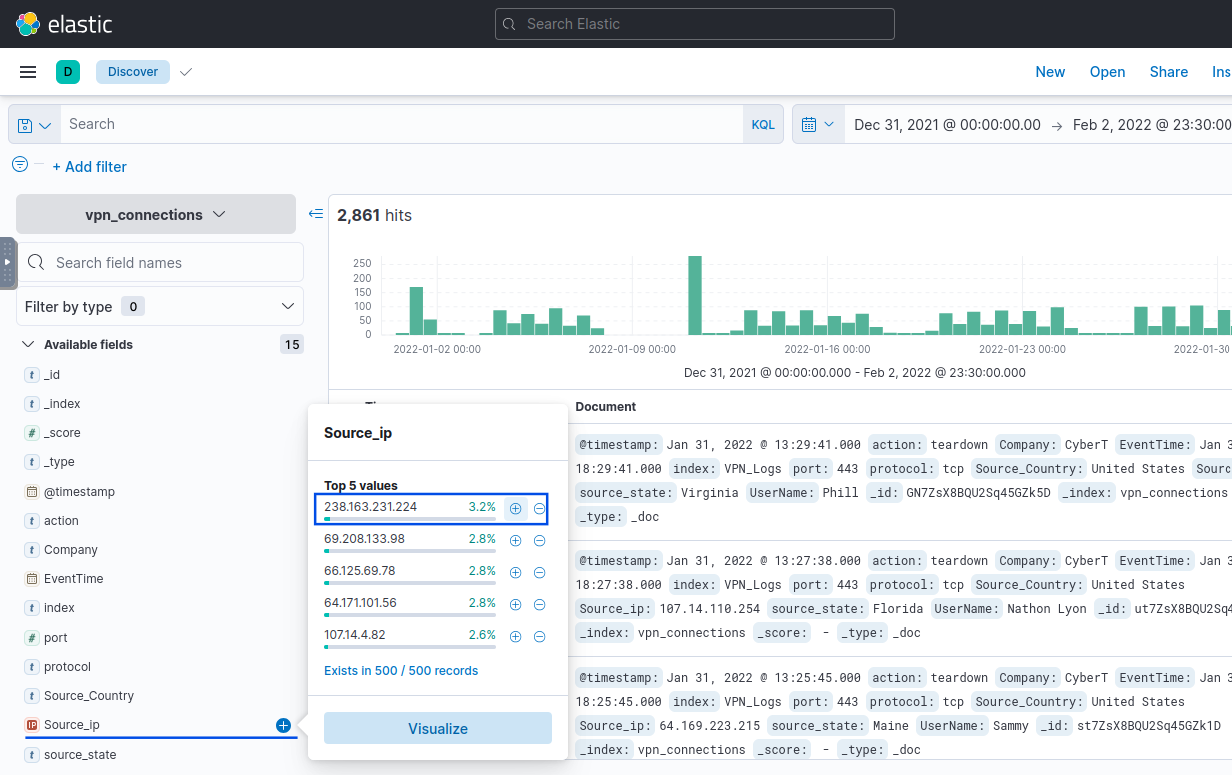

 Which IP address has the maximum number of connections?

Process:

  • I checked the top 5 values of the Source IP address filter to determine which one had the most connections.


Answer: 238.163.231.224

Question 3:

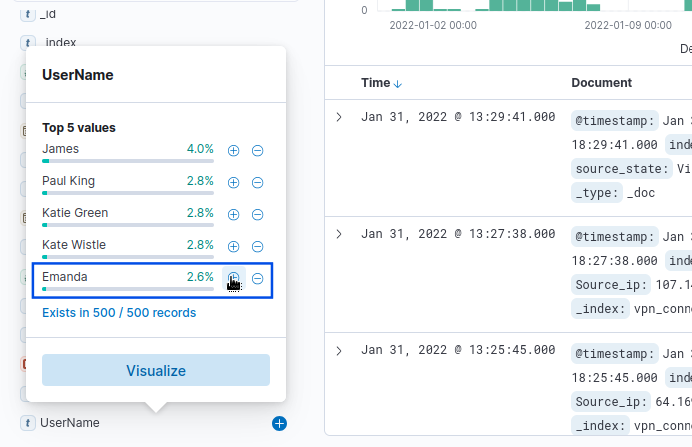

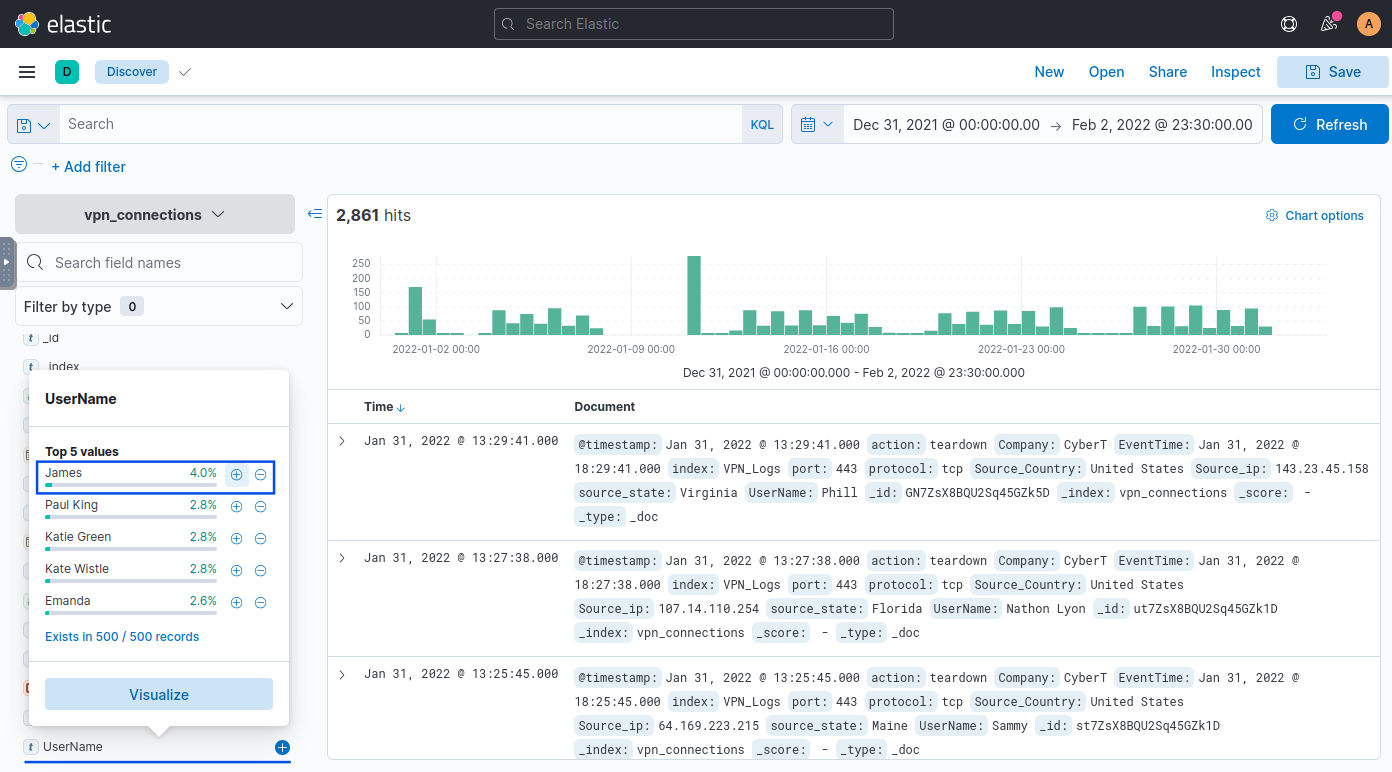

 Which user is responsible for the overall maximum traffic?

Process:

  • I checked the top 5 values of the UserName filter to identify the user with the highest volume of traffic.


Answer: James

Question 4:

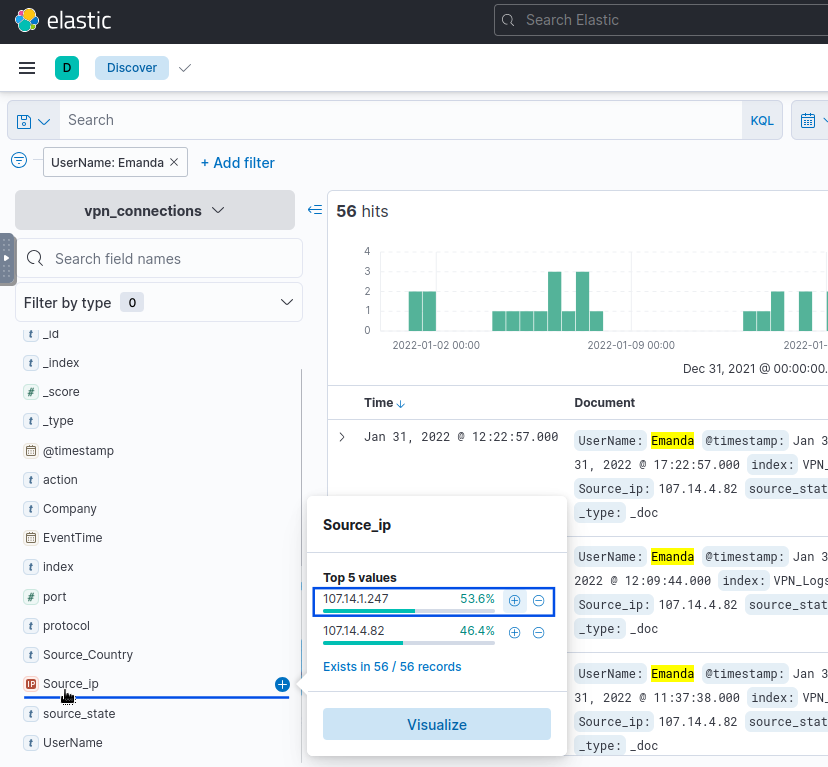

 Apply filter on UserName “Emanda”; which SourceIP has max hits?

Process:

  • First I filtered the logs for the user “Emanda”.


  • Then, in the results, I checked the top 5 values of the Source IP filter.


Answer: 107.14.1.247

Question 5:

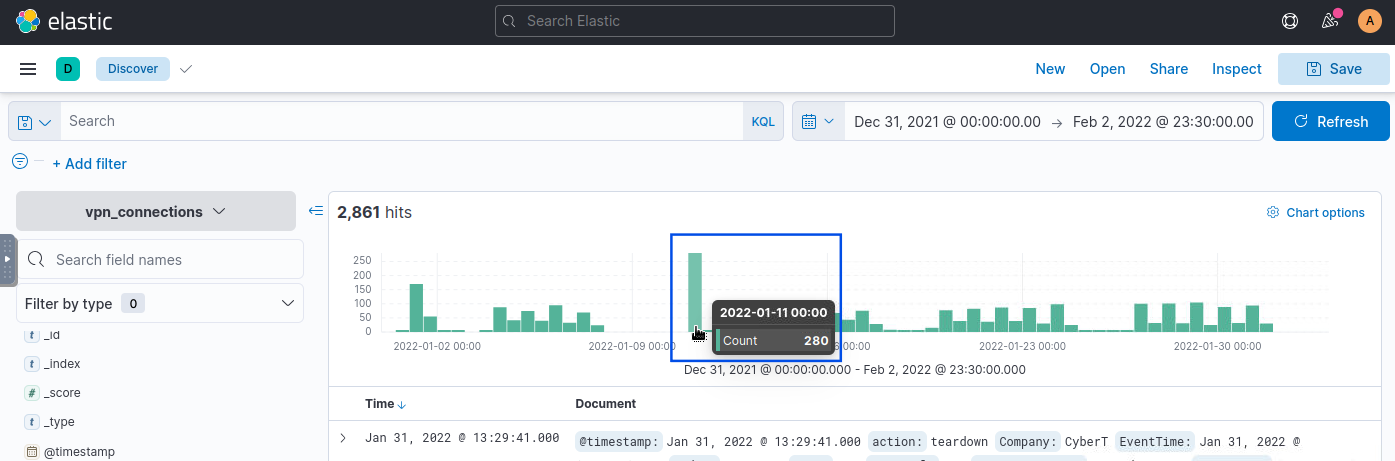

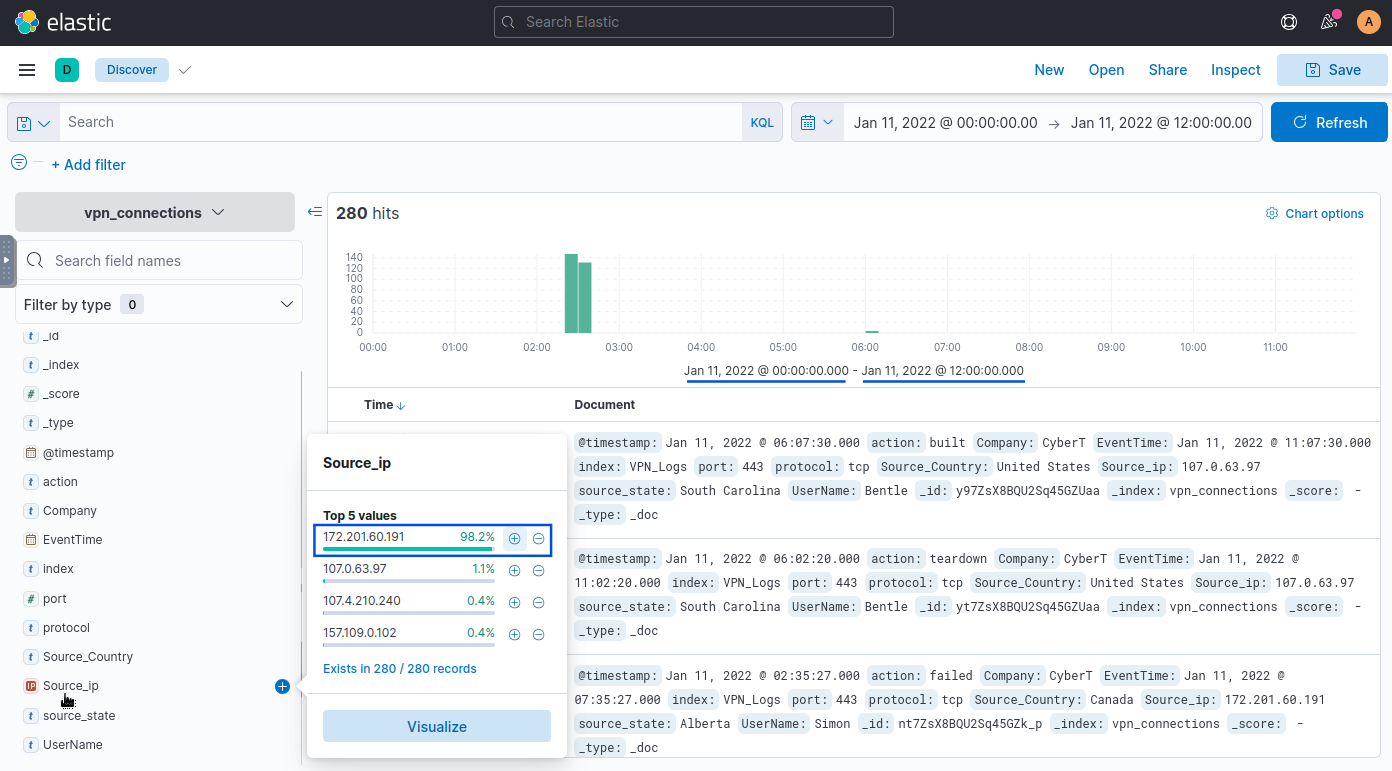

 On 11th January, which IP caused the spike observed in the time chart?

Process:

  • I filtered the results for 11th January using the time chart to identify the IP responsible for the traffic spike.


  • Then, in the results, I checked the top 5 values of the Source IP filter.


Answer: 172.201.60.191

Question 6:

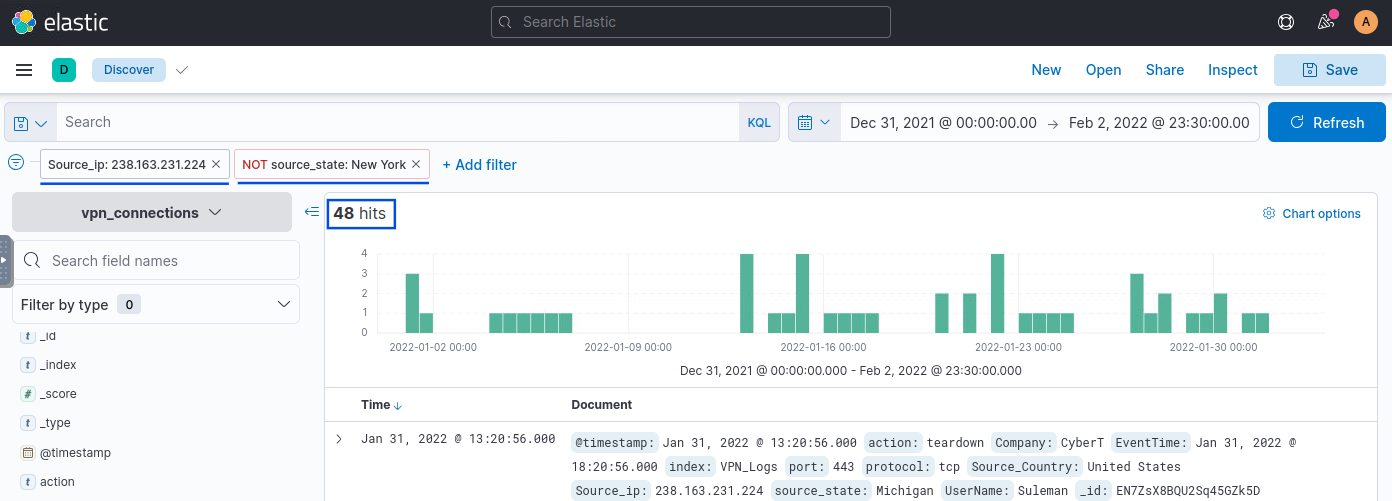

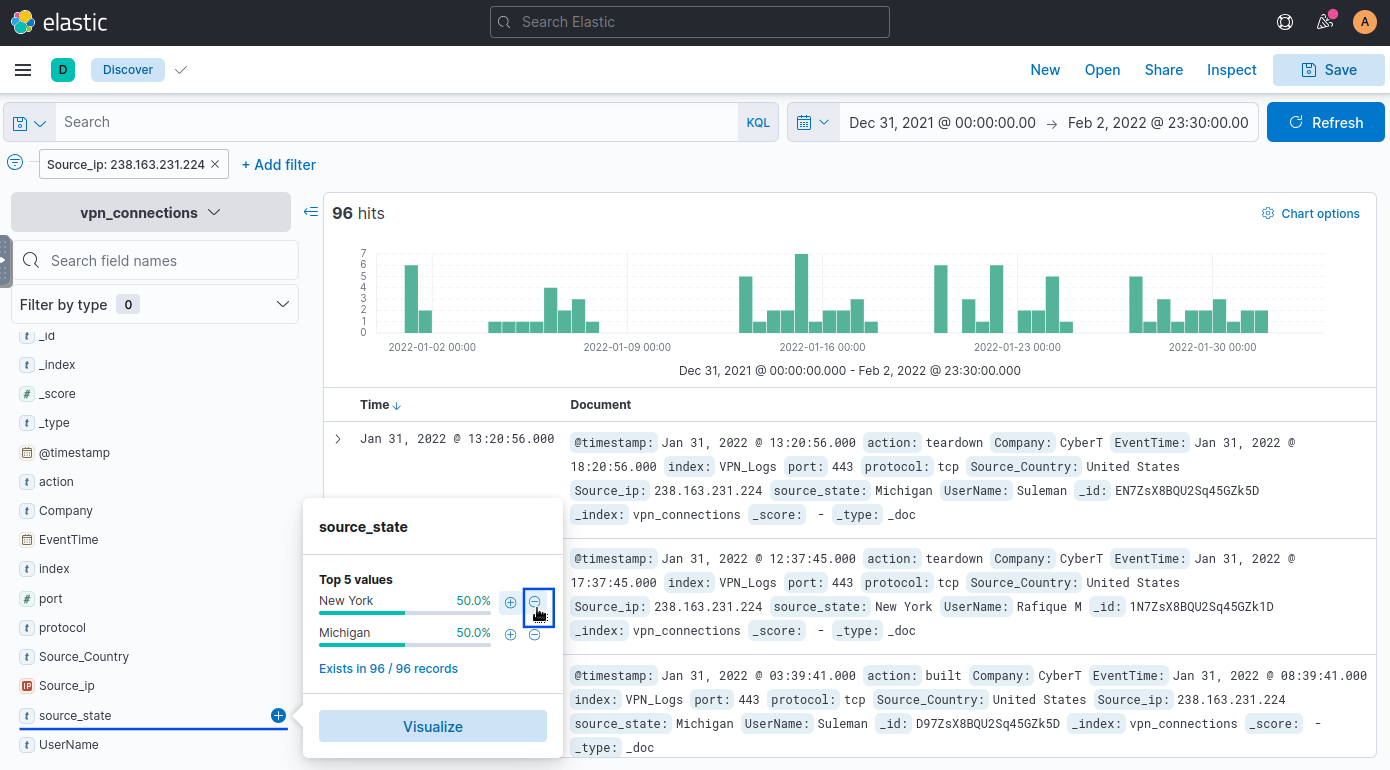

 How many connections were observed from IP 238.163.231.224, excluding the state of New York?

Process:

  • I first filtered by Source IP 238.163.231.224.


  • Then, in the results, I removed results including New York using the source_state field.



Answer: 48

Question 7:

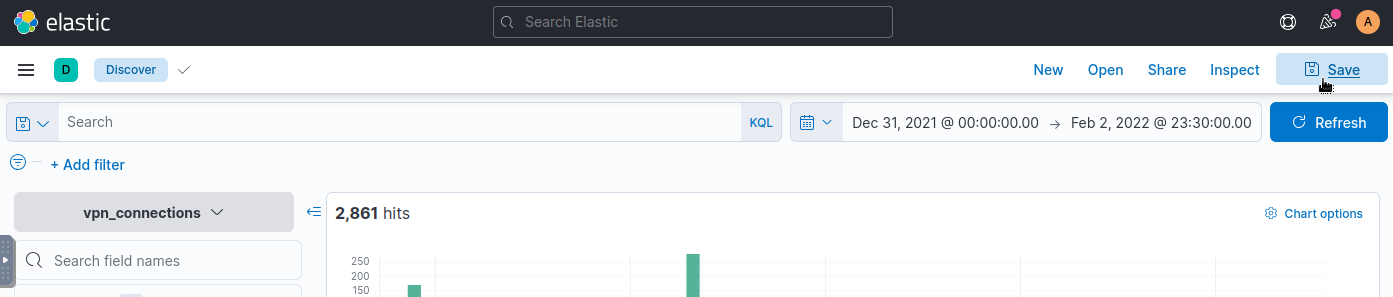

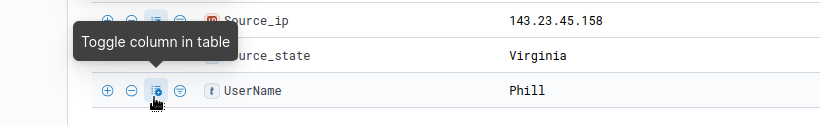

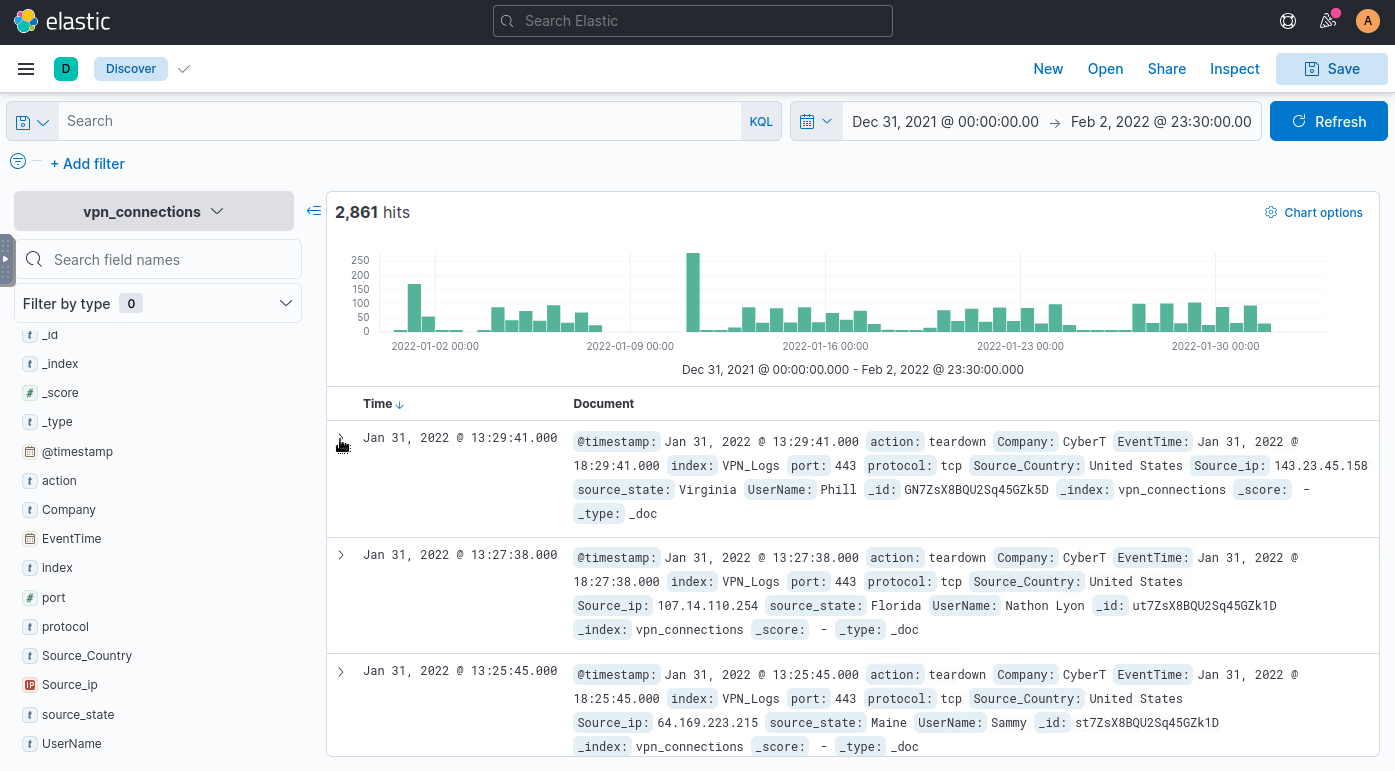

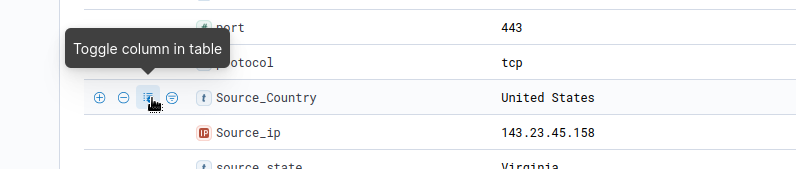

 Create a table with the fields IP, UserName, Source_Country and save.

Process:

  • I used the table creation feature to include the desired fields.






Answer: No specific answer provided (this is an exercise in creating a table structure).

Task 5: KQL Overview

Question 1:

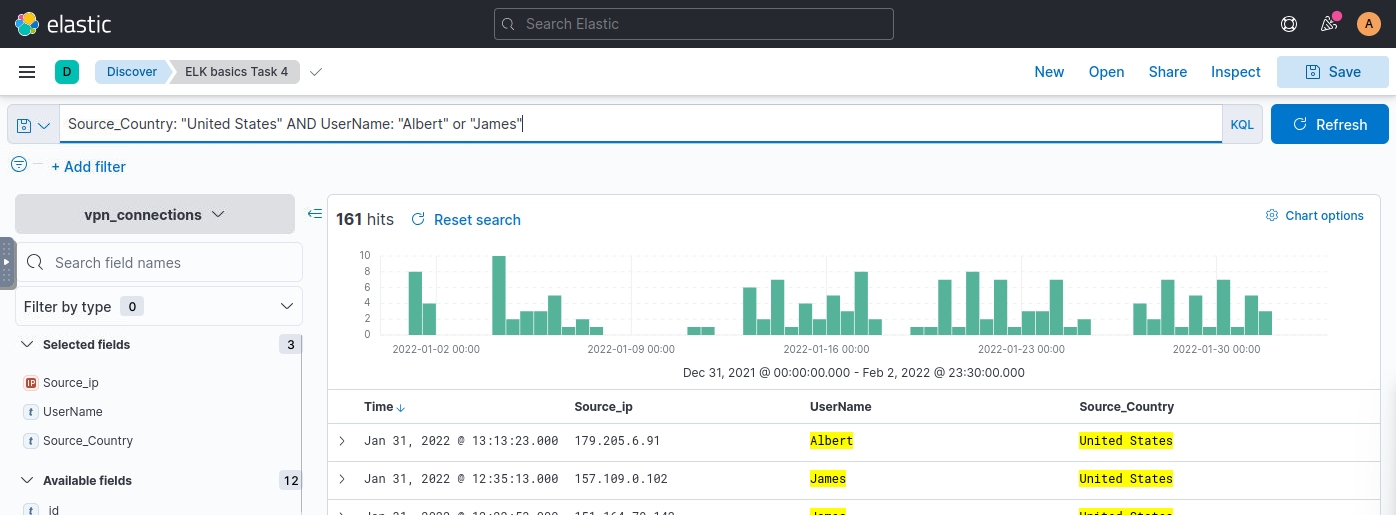

 Create a search query to filter the logs where Source_Country is United States and show logs from User James or Albert. How many records were returned?

Process:

  • I used KQL (Kibana Query Language) to search for logs:
Source_Country: "United States" AND UserName: "James" OR UserName: "Albert".


AND & OR are case insensitive in KQL

Answer: 161

Question 2:

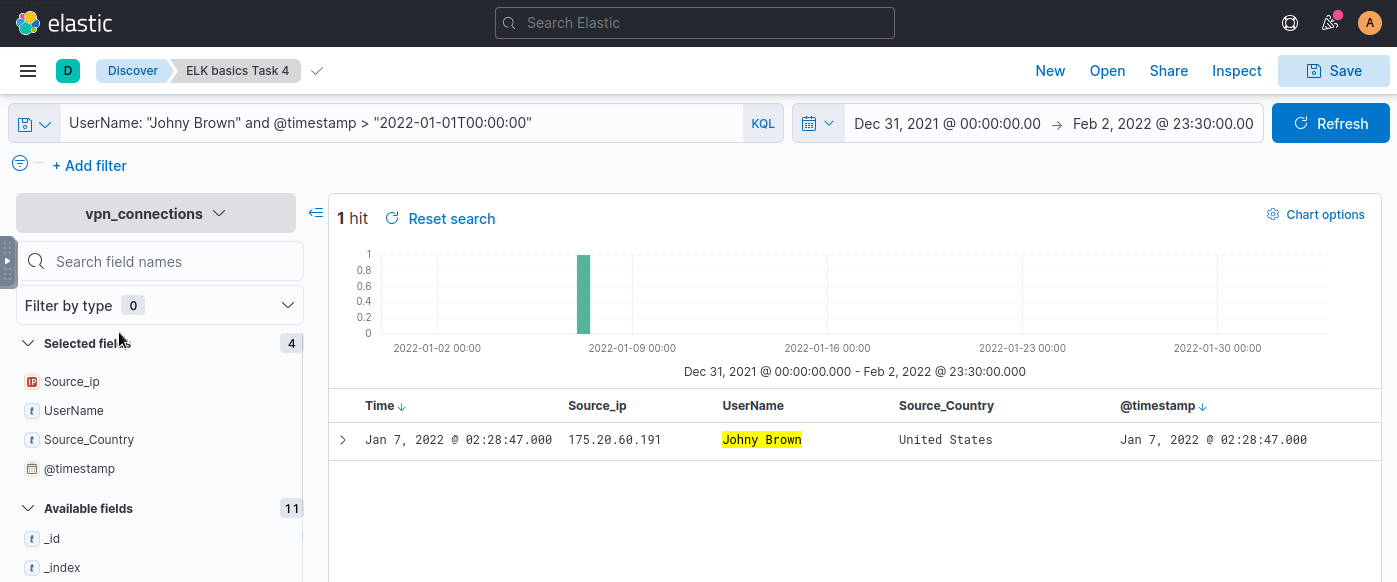

 As UserJohny Brown was terminated on 1st January 2022, create a search query to determine how many VPN connections were observed after his termination.

Process:

  • I did a query for logs where UserName = “Johnny Brown and the timestamp was after 1st January 2022.
UserName:"Johnny Brown" AND @timestamp > "2022-01-01T00:00:00"


Answer: 1

Conclusion

The Elastic Stack (ELK) is an invaluable tool for Security Operations Center (SOC) professionals, offering powerful capabilities for log analysis and investigation. By working through these TryHackMe tasks, we’ve covered fundamental skills like filtering log data, creating queries with Kibana Query Language (KQL), and identifying key metrics that can point to malicious activity. Mastering these skills not only enhances your ability to respond to security incidents but also builds a solid foundation for advanced log analysis techniques.
