Wireshark Traffic Analysis: DNS and ICMP Traffic Tunneling & FTP Cleartext Protocol Analysis
ICMP and DNS exfiltration techniques and malicious cleartext FTP behavior
Introduction
This article walks through two consecutive Wireshark Room tasks focused on detecting anomalous network traffic. The first task explores tunneling techniques using ICMP and DNS, while the second analyzes cleartext FTP traffic to identify malicious behavior. Each question is approached methodically using packet filtering and stream analysis in Wireshark.
Task 5 — Tunneling Traffic: DNS and ICMP
ICMP DNS Tunneling
Question 1:
Use the “Desktop/exercise-pcaps/dns-icmp/icmp-tunnel.pcap” file. Investigate the anomalous packets. Which protocol is used in ICMP tunnelling?
Process:
After doing some quick research, I learned that attackers often encapsulate their payload within the data section of ICMP echo packets, encoding protocols such as TCP, HTTP, or even SSH into what appears to be normal ping traffic.
Since the payload seemed to be encrypted and the expected answer consisted of three letters, I started by filtering packet payloads for the most suspicious of the common three-letter protocols: SSH — and voilà!

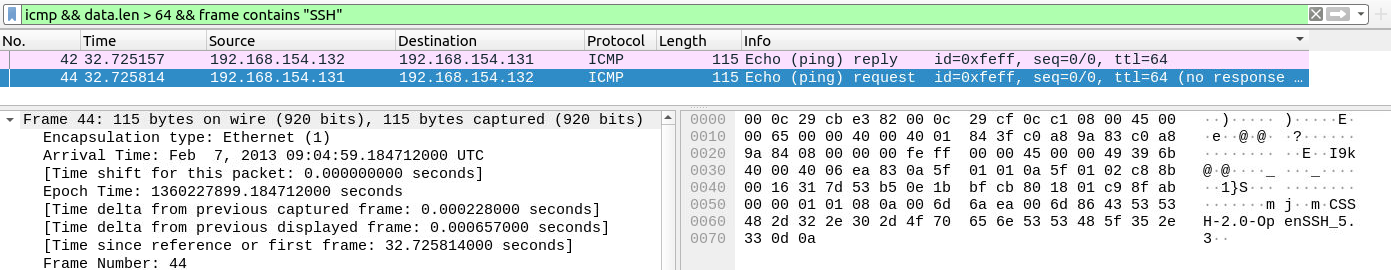

icmp && data.len > 64 && frame contains "SSH"
Answer: SSH
Question 2:
Use the “Desktop/exercise-pcaps/dns-icmp/dns.pcap” file.Investigate the anomalous packets. What is the suspicious main domain address that receives anomalous DNS queries? (Enter the address in defanged format.)
Process:
To identify unusually long DNS queries while excluding multicast DNS traffic, I used the following filter:

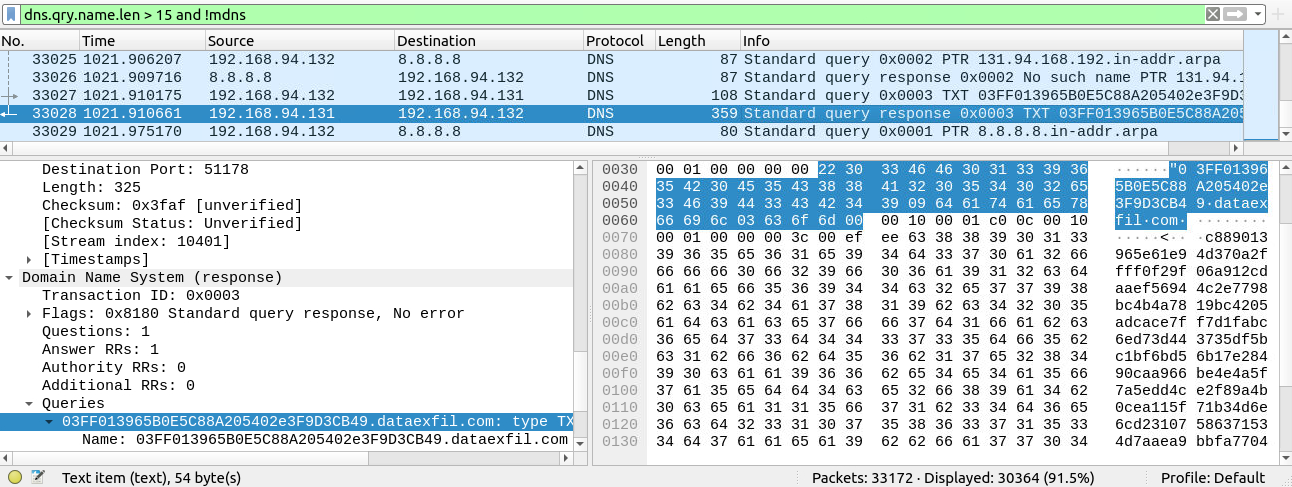

dns.qry.name.len > 15 and !mdns
Answer: dataexfil[.]com
Task 6 — Cleartext Protocol Analysis: FTP
Question 1:
How many incorrect login attempts are there?
Process:
Using the FTP response code for authentication failures (“No login, invalid password”), I applied the following filter:

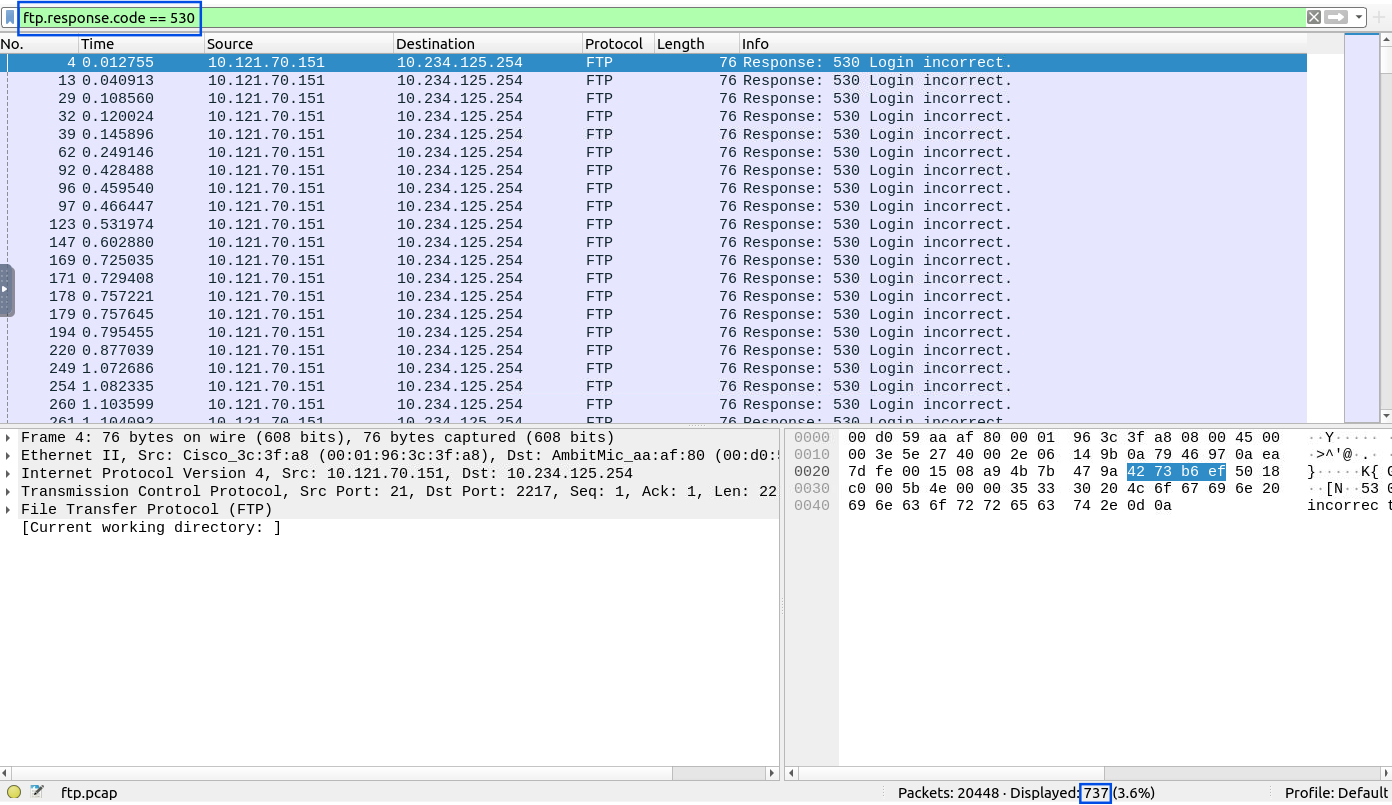

ftp.response.code == 530
Answer: 737
Question 2:
What is the size of the file accessed by the “ftp” account?
Process:
I filtered for FTP response code 213, which corresponds to file status information:

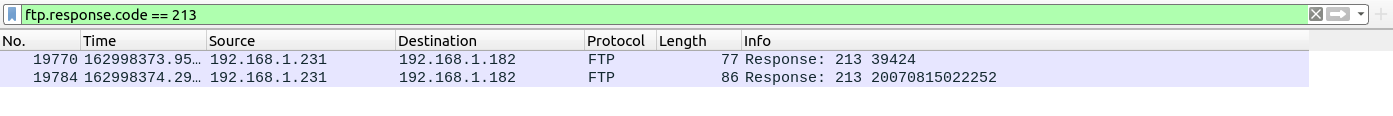

ftp.response.code == 213

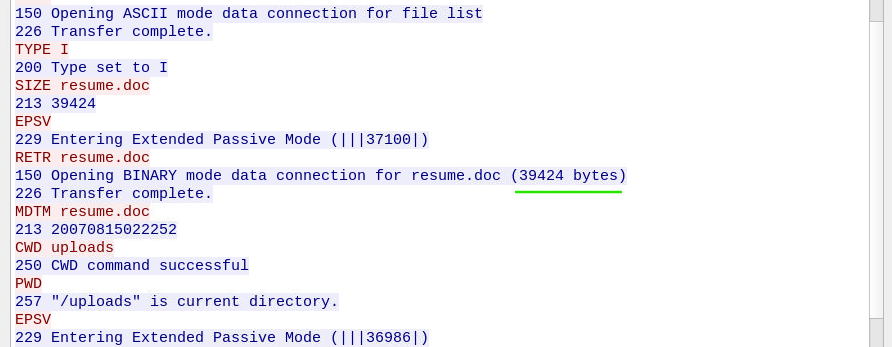

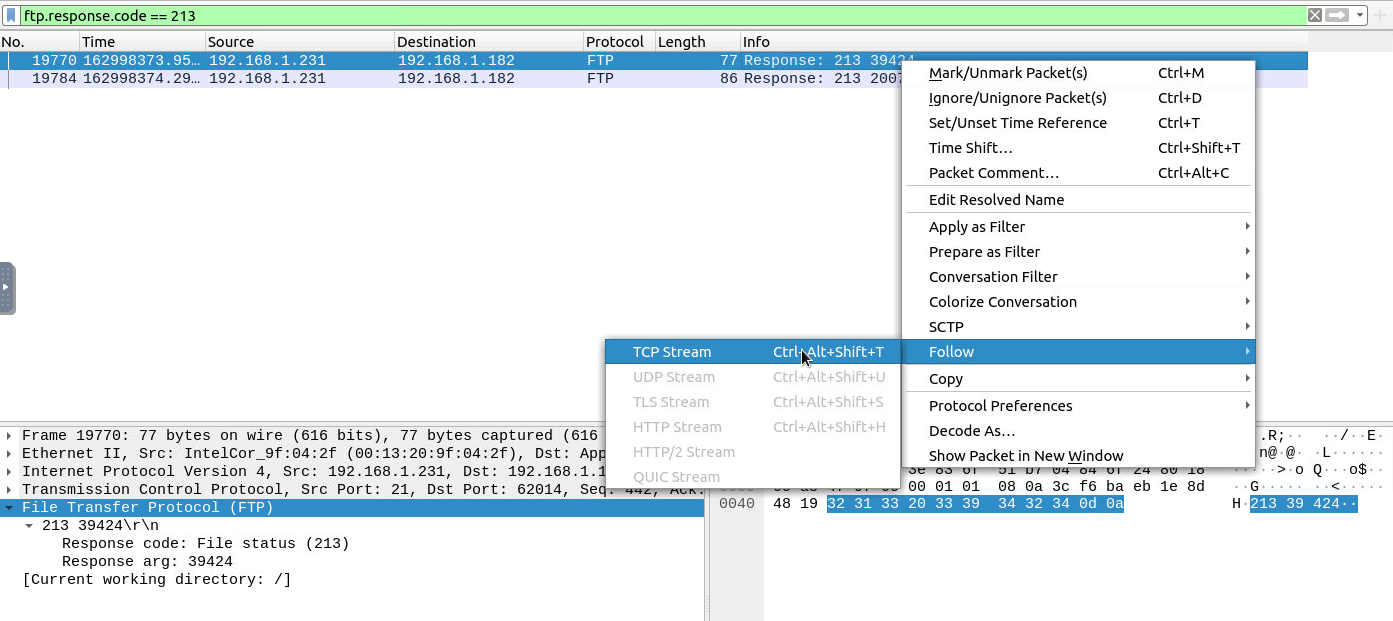

By following the resulting stream, I was able to see the accessed file along with its size.
Answer: 39424
Question 3:
The adversary uploaded a document to the FTP server. What is the filename?
Process:

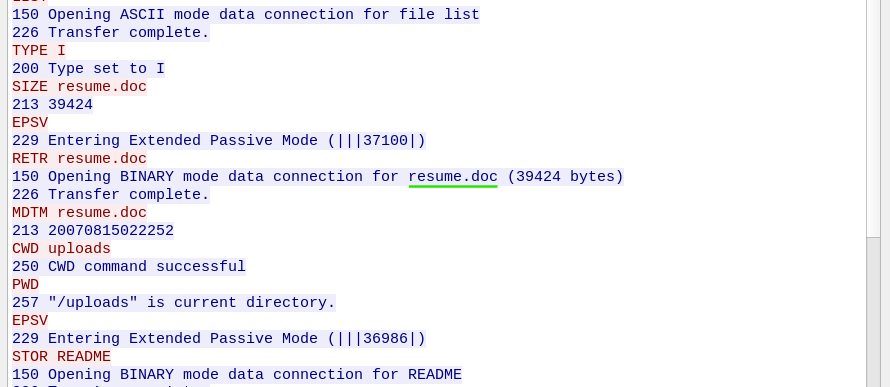

Following the same stream as before, I observed the message 226 Transfer complete. Just before and after this message, the filename was clearly visible. It is the same file referenced in the previous question.
Answer: resume.doc
Question 4:
The adversary tried to assign special flags to change the executing permissions of the uploaded file. What is the command used by the adversary?
Process:
Continuing to analyze the same FTP stream, I found the following command:

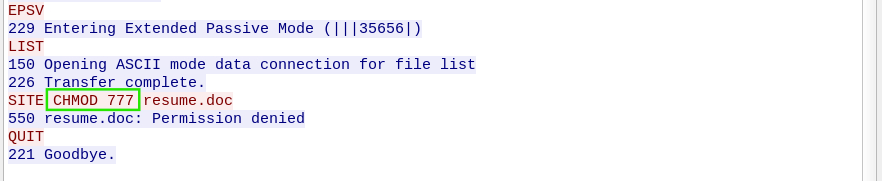

SITE CHMOD 777 resume.doc
Answer: CHMOD 777
Conclusion
These two tasks demonstrate how tunneling and cleartext protocols can be abused by adversaries to exfiltrate data and maintain access to compromised systems. By applying targeted Wireshark filters and carefully following packet streams, it becomes possible to uncover hidden protocols, suspicious domains, and malicious file operations — even when attackers attempt to blend in with normal network traffic.
